Promise Vess R3600tiD 4-port 1G iSCSI+2-port 10G BASE-T,3U, DDR 8GBx1 DC 12TBx16, 192TB
51.999,00 KM
Vess R3000 Series
STORAGE SOLUTION FOR SMBS
Agility, Reliability and Ultimate in Value
The Vess R3000 Series unified storage appliance consolidates both block and file protocols onto a single hardware platform, providing today’s SMB IT operations with cost-effective ways to be flexible, meet performance goals while simplifying storage administration. High availability features design with active-active configuration, the Vess R3000 Series storage solutions can be used in data-intensive environments such as virtualized, cloud data centers or mid-size to large scale surveillance installations utilizing the VESS A Series products where no downtime is required. From Terabytes to Petabytes and beyond with support for on-demand expansion capability plus advanced storage services features bundled, the Vess R3000 Series offerings are the most cost-effective solutions that all SMB’s can afford.
Efficient, Intelligent and Highly Scalable for Your Business Needs
Future proof your storage investment, the Vess R3000 Series supports up to 208 hard drives with online expansion capability. Over-allocating of storage leveraging Thin-Provisioning feature helps take the worry out of planning and testing when additional capacity is required in the future. The included Read/Write Flash Cache Acceleration feature provides additional performance boost while lowering the latency. PROMISE intelligent data caching automatically promotes hot data to cache in real time, so you get the full benefit of flash performance. An additional layer of data protection with the use of the Snapshot feature aides with Point-in-Time content recovery when your business needs it most.
Simplifying Management and Support
Simplicity and ease of use are absolutely crucial for SMBs with limited IT resources. The Vess R3000 is designed specially with SMBs in mind as it features One Plug Auto Service (OPAS) to reduce maintenance complexity and streamline an easier tech support workflow. Simply plug in a USB drive and the user can retrieve information about the system for tech support, upgrade firmware, reset passwords and much more. Embedded web storage management with intelligence Wizard technology helps reduce the learning curve for setup and configuring of the storage solution in your environment.
Going the Extra Mile to Protect Your Data
The Vess R3000’s new CacheGuard Data Protection features, Advanced Battery Flash Backup, go that extra mile to ensure your data is safe in case of power loss. Delivering protection of RAID controller write cache content beyond the standard 72-hour window, you can rest assured knowing your data is protected even when disaster strikes. Predictive Data Migration (PDM) proactive and predictive analytics keep your data safe with self healing technology.

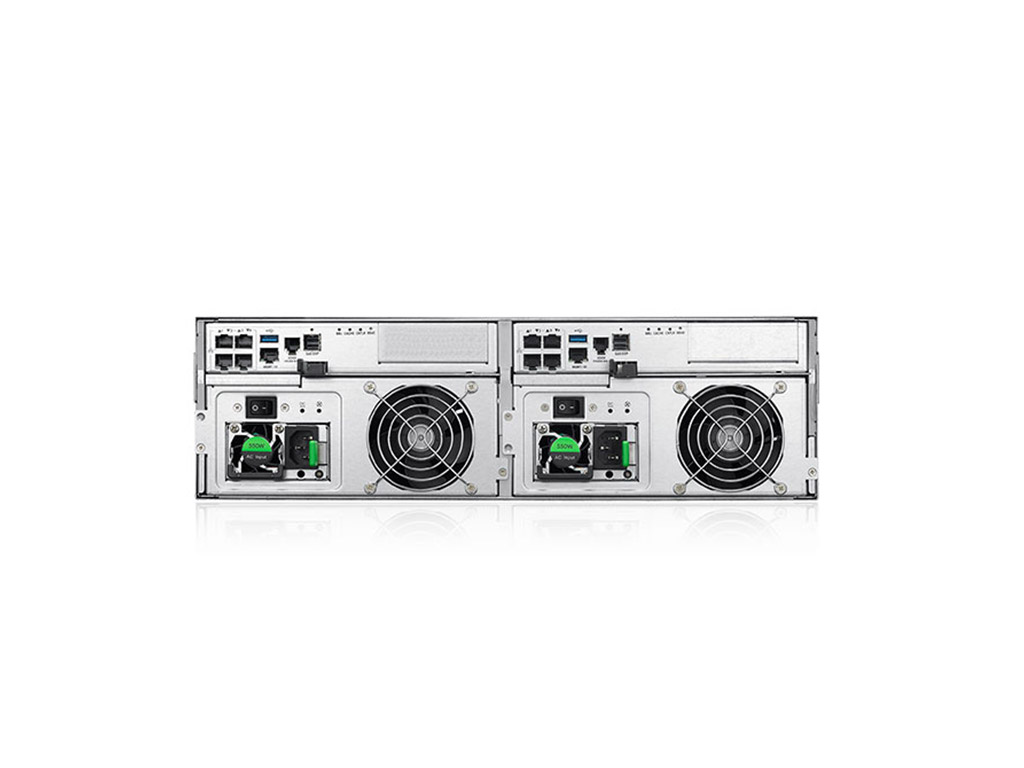

R3600tiS/R3600tiD
Features
• Dynamic storage solution optimized for virtualized environments
• Unified iSCSI connections for SAN and/or NAS in the same storage
• Support for on demand expansion, ideal for today’s growing data centers
• Advanced Storage Services included at no extra cost
• Designed to meet the growing challenge of unstructured data
Specifications
| Drive Support |
|
| Memory | 8GB x 1 per ctrl (up to 64GB) |
| Host Connectivity per Ctrl | 1x Quad port 1GbE 1x Dual port 10GBASE-T |
| Capacity | Online Capacity/Volume Expansion up-to 12 JBOD's, 208 Drivers |
| RAID Levels | 0, 1 , 5, 6, 10, 50, 60 |
| RAID Stripe Size Support | 64K, 128K, 256K, 512K and 1MB |
| Hot Spares | Global or dedicated with revertible option |
| Max Volumes per System | Advance pool: 1024 Standard pool: 991 |
| Max Volumes per Pool | Advance pool: 256 Standard pool: 31 |
| Advanced Storage Features |
|
| Background Activities |
|
| PerfectRAID Features |
|
| SAN Protocol | 1/10G iSCSI ; Max 1024 Sessions per controller |
| Storage Expansion per Ctrl | 1 x one 12Gb SAS Mini-SAS (SFF-8644) |
| Management per Ctrl | 1 x RJ-45 1Gb Ethernet and 1x RJ11 Serial Port |
| GreenRAID Features |
|
| Network Protocols | SMB/CIFS (Windows, MAC), NFS (Linux/Unix), FTP, WebDAV |
| Max. Share Disk | 1024 per pool |
| Max. Share Disk Size | 1PB |
| Max. no. of Concurrent Sessions | 4096 |
| Max. Account | 10K |
| Supported Domain | Microsoft Active Directory, LDAP, Apple Open Directory |
| Max. Domain Account | 100k |
| Data Management | Permission Management, Quota Management, Online Expansion |
| Management Interfaces |
|
| Supported OS | Windows Server 2008, 2012, 2016, OS X 10.x, RHEL 6.5, 6.6, 6.7, and 7.2, SLES 11, 11 SP4, and 12 SP1 |
| Software Certification | VMware ESXi 6.7, Citrix Server 7.4, Windows |
| Power Supply | CRPS 550W ; Efficiency 80PLUS Certified Redundant Power Supply |
| Voltage | AC: 100-240VAC; DC: 180-320VDC Auto-Ranging |
| Current (Maximum) | < 8A@100-240VAC@full load; < 8A@180-320VDC@full load |
| Power Conversion Efficiency | >80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range |
| Temperature Range | Operational: 5° to 35°C, Non-Operational: -40° to 60°C |
| Humidity | Operational: 20% to 80% (Non-Condensing), Non–Operational: ~ 95% (Non-Condensing) |
| Acoustic Noise Levels | < 60dB, 25°C |
| Shock | Operational: 5G, 11 ms duration, Non-Operational: 30G, 11ms duration |
| Vibration | Operational: 0.2G, 5 to 500Hz (sine wave) ; 0.41G, 3-10-200-500Hz (Random) , Non-Operational: 1G, 5 to 500Hz (sine wave) ; 2.256G, 5-80-350-500Hz (Random) |
| Safety and Emission Certification | EMC Class A: CE, FCC, VCCI, BSMI, RCM Safety: IEEE CB, NTRL |
| Environmental Standards | RoHS, WEEE |
| Dimensions | 131mm x 446.7mm x 507mm (5.2” x 17.6” x 19.96”) |
| Warranty | 3 year limited warranty |
| Support | Flash Module, 8Gb SFP Optical Transceiver, SAS Cable, 3G SATA AA-Mux Adapter, 6G SAS-to-SATA Interposer Adapter, 10Gb SFP+ Optical Transceiver |
| 1 32GB DRAM is required for NAS Feature and Data Services. *S: Single Controller / D: Dual Controller *Specifications subject to change without notice. |
|
