Sonnet Twin25G Dual Port 25Gb PCIe Card (SFP28s included)

Twin25G PCIe Card
Dual-port 25 Gigabit Ethernet PCIe Card with Two SFP28 Transceivers
for Mac®, Windows®, or Linux® computers with PCIe card slots
Incredible 25GbE Connectivity

Many bandwidth-intensive workflows — including post-production shared storage workgroups — have reached a point where 10Gb Ethernet does not provide sufficient bandwidth and speed for optimum performance. Upgrading to 25Gb Ethernet is the smart choice — it offers greater performance and works with the same optical network infrastructure as 10GbE. Step up to the Sonnet Twin25G™ PCIe Card, an affordable and powerful solution for adding incredibly-fast fiber optic 25GbE network connectivity.

Compatibility

Mac Compatibility
• Mac Pro 7,1 (2019)
• macOS 13 (Ventura)

Windows Compatibility
• Windows 11 and 10
• Windows Server 2022, 2019

Linux Compatibility
• Linux Kernel 5.0+

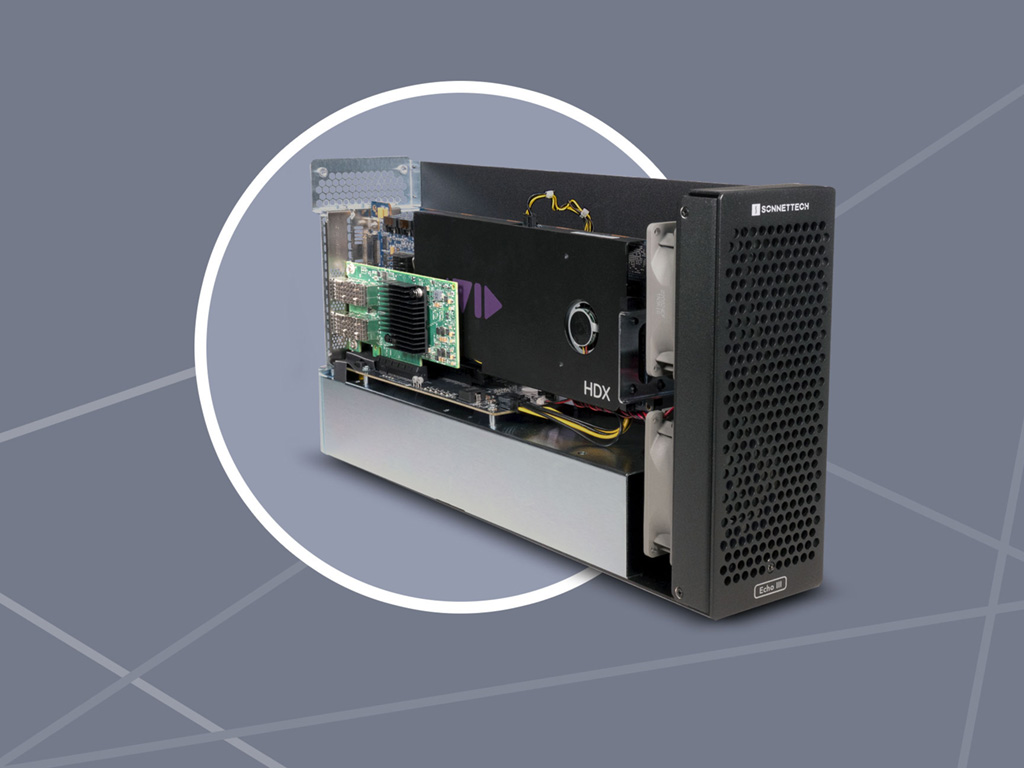

Thunderbolt PCIe Expansion System Compatibility
• Mac computer (M1/M2 series, Intel) with Thunderbolt port via a Thunderbolt to PCIe card expansion system
• Windows computer with Thunderbolt port via a Thunderbolt to PCIe card expansion system
• Linux computer with Thunderbolt 4 port via a Thunderbolt to PCIe card expansion system

Hardware

Part Number
• G25E-2X-E3

Warranty
• 2-year

Form Factor
• Low-profile PCIe 3.0 x8 card
• PCIe x4 slot supports one port at full bandwidth
• PCIe x8 slot supports two ports at full bandwidth

External Connectors
• Two SFP28 optical transceivers

25GbE Controller
• Mellanox ConnectX

Network Support
• 25Gb/s
• 10Gb/s

Link Aggregation (Teaming)
• Supported by Windows and Linux
• PCIe x8 slot recommended

Packets
• Maximum packet size: 9000 bytes (jumbo frames)

Advanced Features
• Flow control support
• MSI (Message Signaled Interrupts)
• RSS (Receive-Side Scaling)
• Multicast filtering
• 64-bit address support for systems using more than 4GB of physical memory
• Wake-on-LAN not supported

Stateless Offloads
• TCP, UDP, and IPv4 checksum offloading
• TSO (TCP Segmentation Offload, AKA Large Send Offload)(3)
• TRO (TCP Receive Offload)

Compliance
• RoHS 3 (Directive 2015/863)
• IEC62368-1 and IEC62368-2 Safety

Package Contents
• Twin25G PCIe Card
• Two PCIe mounting brackets
• Documentation
