Sonnet xMac Studio – Echo III module
Pro 3U Rackmount Enclosure for Mac Studio With Echo III
Three-Slot Thunderbolt to PCIe Card Expansion System
Sonnet’s xMac Studio integrates a Mac Studio into a compact rackmount enclosure with an optional PCIe card expansion module
to support diverse audio and video application needs
Three Systems to Choose From
For many creative professionals, PCIe card expansion is not an option – its a necessity for connecting specialty cards to
handle audio and video post-production projects. Sonnet designed the xMac Studio for pro workflow flexibility;
choose a system configured with a Thunderbolt to PCIe card expansion module that best suits your needs.
xMac Studio is also available without a module so you can add one at a later date, or use one of your existing
compatible Sonnet expansion modules.
Three Card Expansion

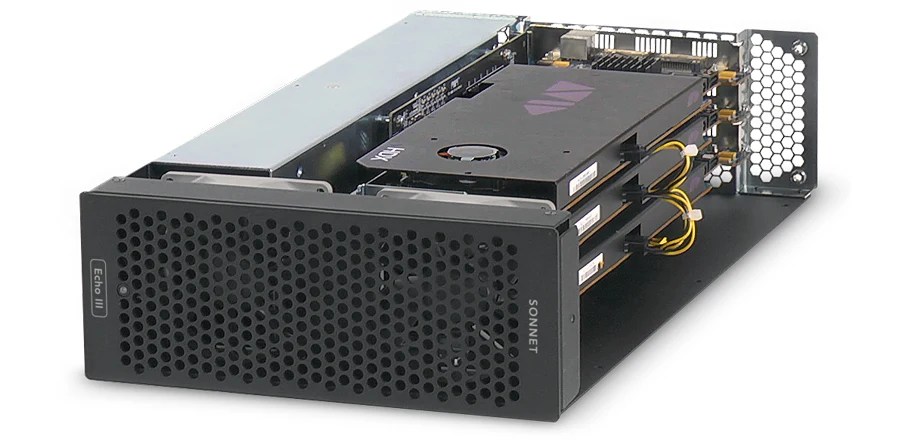

xMac Studio/Echo III
Enclosure with Echo III Module
Three PCIe 3.0 slots
(one x16 plus two x8 slots; supports PCIe 4.0, 3.0, 2.0, and 1.1 PCIe cards)
Supports three full-height,
full-length PCIe cards
Two 40Gbps Thunderbolt ports
400W power supply
(with 75W aux. power connector)
Dual Noctua quiet fans
(rated at 17 dbA)
Includes power cable, 40Gbps Thunderbolt cable, ThunderLok 3 connector retainer clip,
and one adhesive-backed magnet for mounting an SSD drive
