Vizrt TriCaster TC410 Plus

Technical Specifications

Video Input
8 x simultaneous external video inputs, supporting any combination of compatible sources

Network Video Input
8 x IP video inputs via NDI, resolution-independent, with support for key and fill

SDI Video Input
4 x HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates ¹1080p: 59.94, 50, 29.97, 25, 24, 23.976
1080i: 59.94, 50
720p: 59.94, 50, 29.97, 25
576i 25
480i 59.94
¹ Available frame rates determined by session video standard (NTSC or PAL)

PTZ
Support for Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system

Skype TX
Native support for Skype® video call input via Skype TX software integration

Network Video Output
4 x independent IP video mix outputs via NDI®

SDI Video Output
2 x independently configurable HD/SD video outputs, with support for up to 4 simultaneous external connections

Stream Output
2 x resolution-independent streaming video output, independently configurable, with simultaneous stream archive

Multiviewer Output
• 1 x DVI user interface with multiviewer
• 1 x HDMI multiviewer
• 1 x DisplayPort multiviewer

Mix/Effect Buses (M/E)
4 x M/E buses supporting video re-entry
• 1 x Mix/Effect channel per bus with support for up to 2 sources
• 2 x KEY layers per bus
1 x PREVIZ configuration and preview bus

DSK Channels
2 x DSK channels

Media
5 x media players
• 2 x DDR
• 2 x GFX
• 1 x Sound

Media Buffers
15 x media buffers
• 5 x animation buffers
• 10 x graphic buffers

Keyers
Integrated LiveMatte® chroma and luma keying technology on all source channels and M/E buses
• 8 x input keyers
• 4 x media player keyers
• 4 x M/E keyers
• 1 x PREVIZ keyer
• 15 x buffer keyers

Virtual Sets
Integrated LiveSet® technology with 30+ live virtual sets and box effects included

DataLink
Integrated DataLink® technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

Macros
Record, store, edit, and automate commands and user-configured operation sequences
• Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI, and X-keys® buttons or GPI triggers
• Attach to internal events and state changes, including audio, media playback, tally, and specific switcher actions
• Supports control via web-based interface

Recording
6 x configurable video recording channels via IsoCorder® technology
• 4 x QuickTime® archival video recorders (SHQ2 quicktime codec, 4:2:2 encoding, 24-bit audio, with timecode)2
• 2 x H.264 local video recorder (multiple profiles)
2 QuickTime Player not required for playback in common NLE applications

Storage
1 x 3TB internal drive
• Capacity varies by format, resolution, and file specification
• Supports recording to external storage via USB 3.0
• Supports shared storage integration and third-party partner solutions

Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs

Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

Audio Mixer
Integrated multi-channel audio mixer with support for quad-channel audio, DSPs, 4 x 4 x 4 audio input channel routing

Local Audio Input
4 x SDI embedded
1 x Balanced XLR stereo pair (Line)
3 x Balanced 1/4” stereo pairs Line)
Support for USB audio device input via compatible WDM audio drivers

Local Audio Output
• 4 x SDI embedded
• 1 x Balanced XLR stereo pair
• 1 x Balanced 1/4” stereo pair
• 1 x Stereo 1/4″ (phones)

Network Audio
• Native support for network audio input and output via NDI®
• Embedded audio supported for all NDI® input and output video signals
• Integrated support³ for Dante™ networking protocol from Audinate®
• Support for AES67 protocol via compatible WDM audio drivers
³ Requires Dante Virtual Soundcard license from Audinate (sold separately)

Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
• Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
• Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
• Audio: AIFF, MP3, WAV, and more

Monitoring
Support for up to 3 multiviewer displays with configurable workspaces and viewports

Signal Monitoring
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

Processing
• Video: Floating Point YCbCr +A 4:4:4:4
• Audio: Floating Point, 96 kHz

Latency
Processing Latency: ~1.0-1.5 frames
Practical Throughput Latency: 4 frames

A/V Standards
HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155

Tally
Support for hardware tally via HD15 GPI connector, network tally via NDI®, and Blackmagic Design® SDI tally standard

Genlock
Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals

GPI
Supports GPI signals via JLCooper Electronics eBox GPI interface

MIDI
Support for standard MIDI protocol enabling third-party device control

System Drive
250GB SSD

NIC
2 x 1 Gigabit NIC

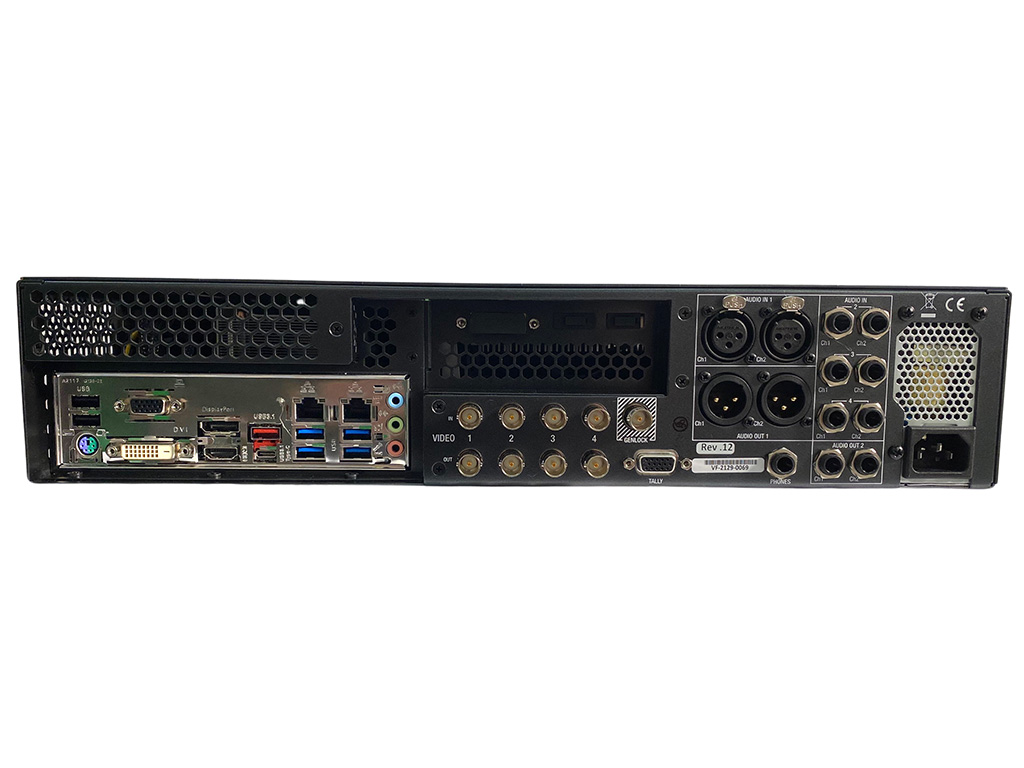

System Physical
2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
• 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
